What is the 1+1 Series?
"1+1" means "IQUNIX + You", IQUNIX basic layout + your individual needs = Super 1+1 Series.
There will be TKL, 75%, FRL, 96%, full size, and other layouts for the 1+1 product line.
The latest launch is 1+1 = TKL, a gasket mount keyboard kit with 89 keys layout, crafted from full aluminum.
IQUNIX SUPER 1+1 conveys a fusion of premium engineering, timeless minimalist design,
and limitless creative possibilities built for visionaries by visionaries.
Where will inspiration strike next? The open road awaits.
Design Language
The IQUNIX Super 1+1 primary color scheme cleverly divides the top covers of the main key area, navigation keys, and arrow keys into three contrasting color zones, and the red, blue, and white mixed colors, add a unique design effect to the entire keyboard and retro vibe.
Furthermore, we offer three solid color design options to meet the diverse preferences of consumers, allowing users to find their preferred style.

Premium Crafted
The whole barebone kit is composed of 7 individual metal parts, each intricately CNC machined from premium aluminum and costing lots of time. We never compromise on quality and design.

Unique Antenna Module
In general, metal materials will interfere with keyboard signals. Our unique antenna module design enhances the 2.4 GHz/Bluetooth signal for a smooth typing experience even at long distances.

Gasket Mount
1+1 TKL is a gasket mount keyboard kit. The rubber gaskets help reduce ping and vibration, providing a softer feel and deeper sound when typing. And it also makes customization and building easier.

Hot Swappable
1+1 TKL offers three PCB options, and they're all hot-swappable, allowing you to easily swap out your preferred mechanical switches on your keyboard without any soldering or technical expertise.

Tri-Mode Connectivity
We're committed to the original design. Our tri-mode driver is independently developed for an efficient, intuitive, user-friendly experience. You can set up and personalize your keyboard easily with IQUNIX Firmware.

Long-Lasting Battery
The 1+1 TKL will come with two 2000mAh Li-ion batteries included in the kit. It can last up to 3000 hours for the tri-mode version with Bluetooth connected and all backlighting turned off, including the indicator light.

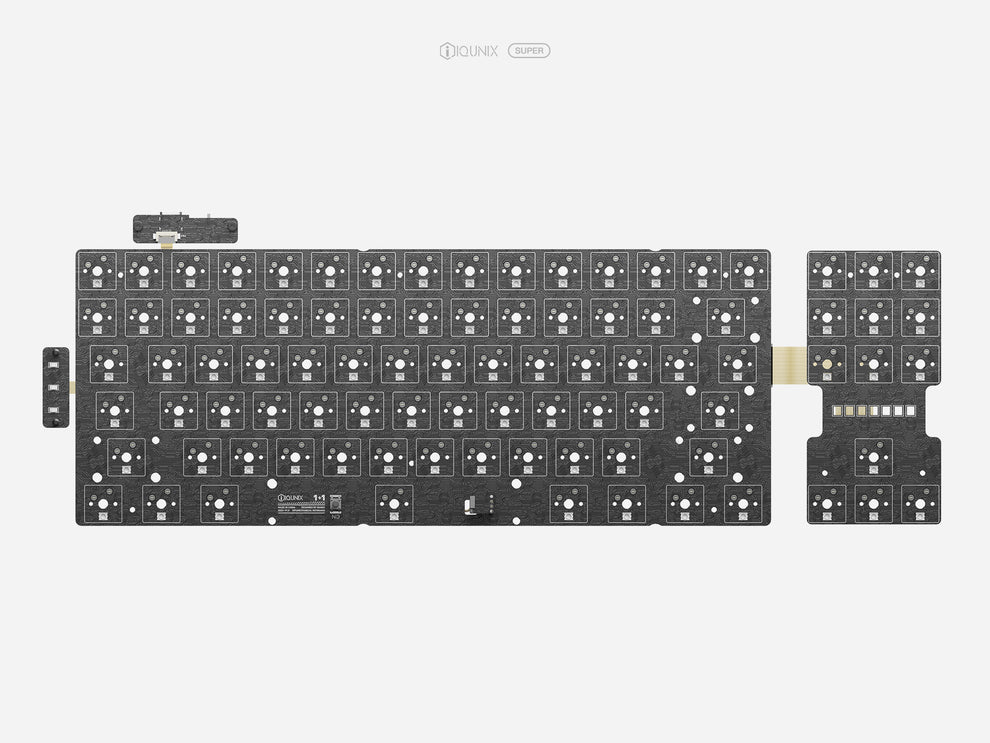

THREE PCB OPTIONS
SPECS & PACKAGE
SPECIFICATION
IQUNIX Super 1+1 TKL
• Gasket Mount
• Aluminum Case
• Typing angle: 6.5°
• IQUNIX PCB-Mount Stabilizers
• Case Weight: approx. 1.24kg
• Default Package Weight: approx.2.85kg
• Dimension: 377mm * 128mm * 22mm (front height)
• Connectivity: Bluetooth 5.1 / 2.4GHz / USB-C
• Software: IQUNIX Firmware / QMK Firmware
• Surface Coloring: Anodized / E-coating
IQUNIX Moonstone Switch
• Linear
• 5-pin
• Pre-lube
• Color: Translucent
• Sound: Deep & Thock
• Operating Force: 37±5gf
• End Force:47±5gf
• Pretravel:2.0±0.4mm
• Total Travel: 3.7±0.3mm
• Durability: 80 million actuations
PACKAGE
• Keyboard Case x1
• PCB x1
• FR4 Plate x1
• Coiled Cable (Type-C) x1
• PCB-mount Stabilizers Kit x1
• Foam Kit x1 (IXPE Switch Pad, Poron PCB Foam, Poron Bottom Case Foam, IXPE Bottom Case Foam)
• Manual x 1
• Screws Set x1
• Screwdriver x1
• Switch Puller x1
• Please note the default keyboard kit does NOT include keycaps and switches.
• A 2.4G USB receiver and two 2000mAh Li-ion Polymer Batteries will be included if you choose the Tri-mode PCB.

PRICE & BONUS & VENDORS
PRICE
Keyboard Kit
• 1+1 TKL Keyboard Kit (Tri-Mode PCB)
US$369
• 1+1 TKL Keyboard Kit (Wired PCB)
US$349

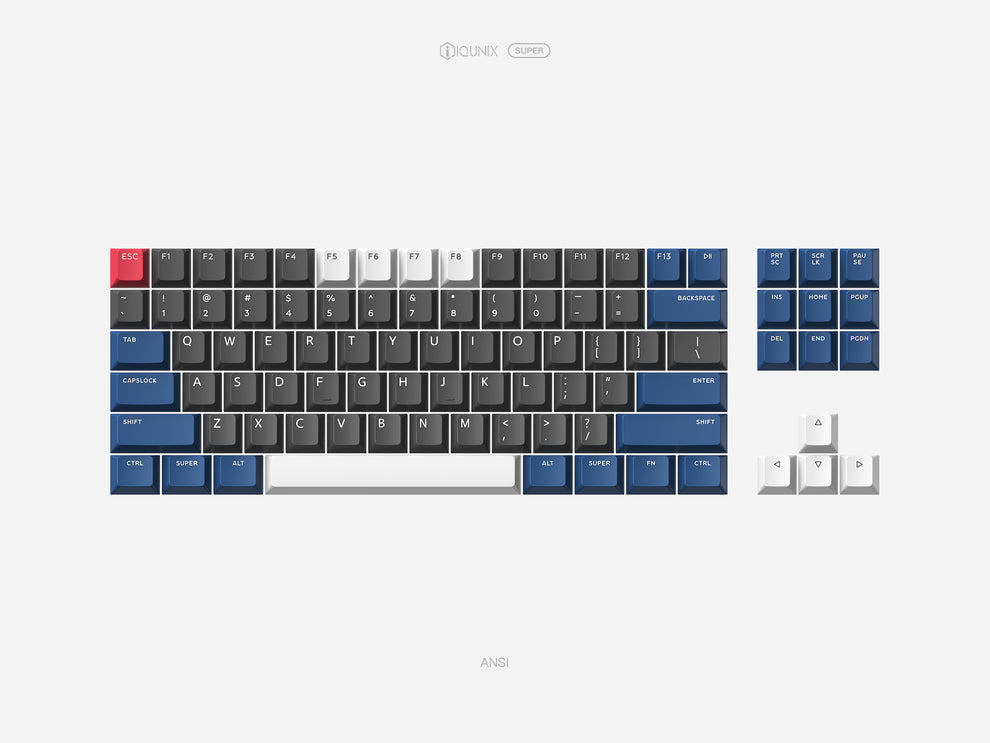

• Themed WK-ANSI Keycap Set
US$59
• Themed WK-ISO Keycap Set
US$59
Add-on Accessories

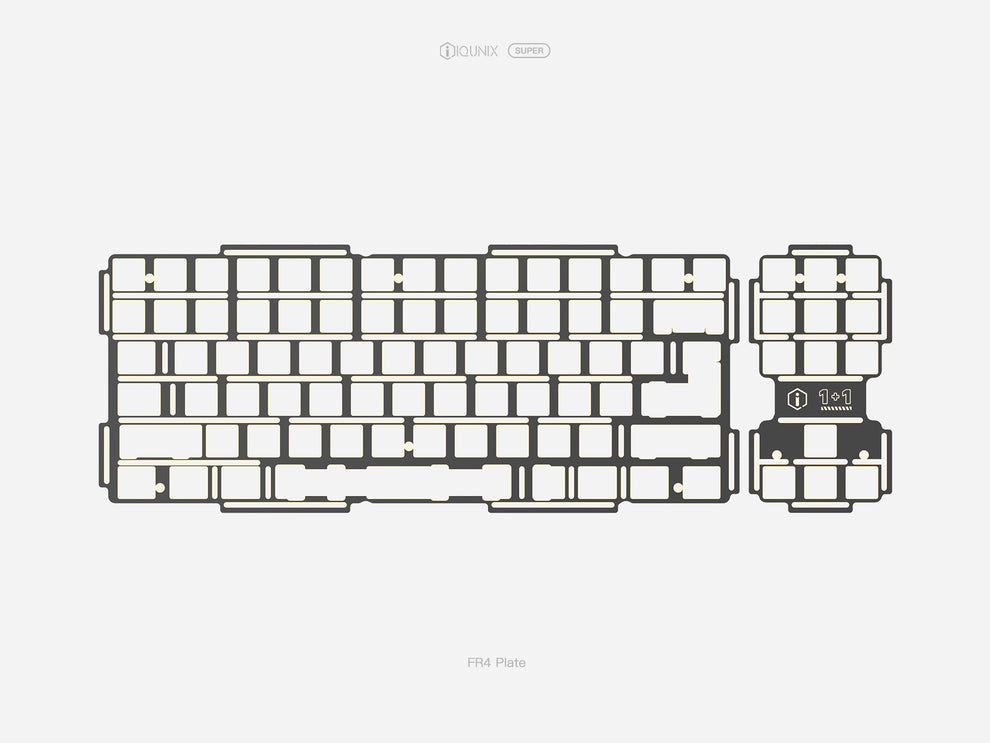

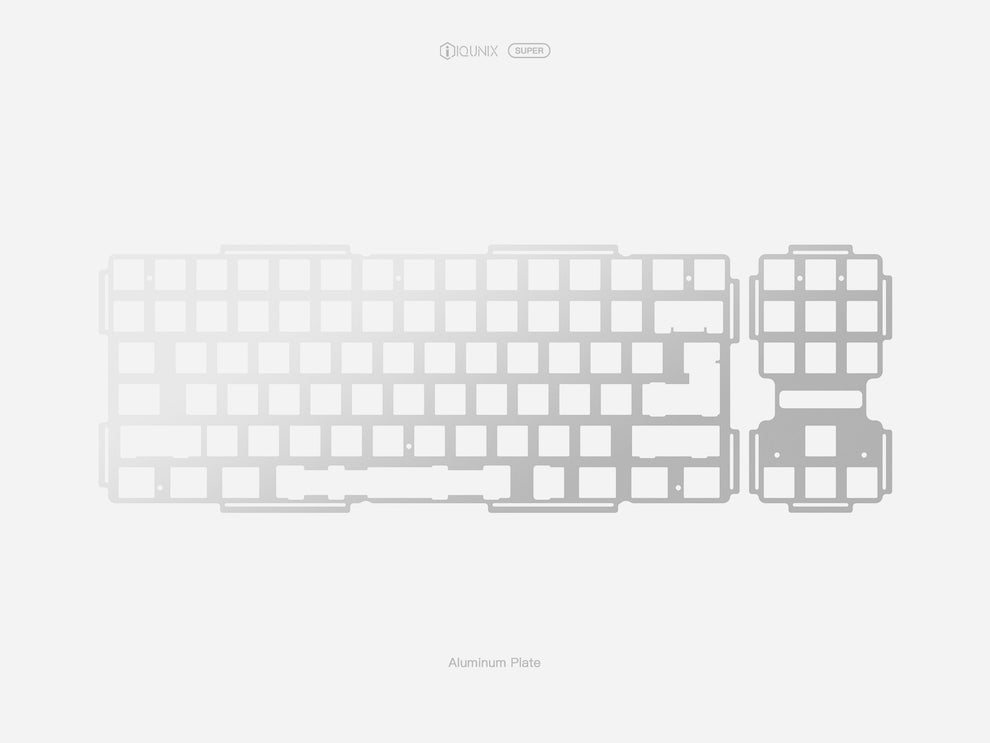

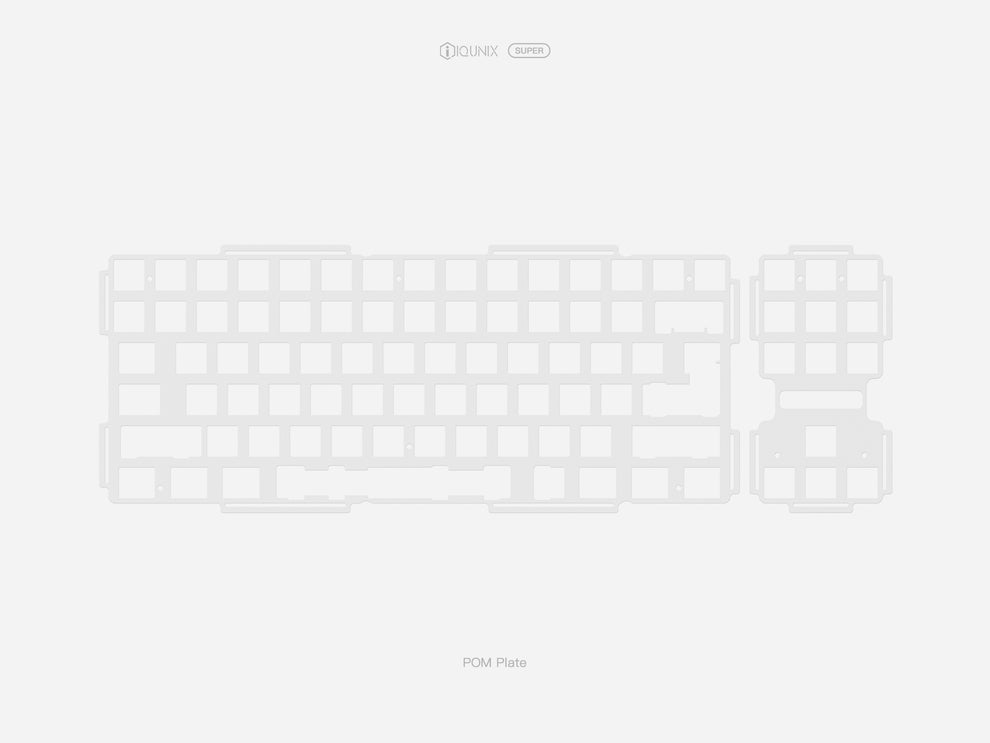

• Plate-Aluminum / FR4 / POM
US$29
• Tri-Mode PCB
US$79
• Wired Hotswap PCB
US$59
• Foam Kit
US$19
BONUS
WK Themed Keycap Set
Customers who place their orders within the first 7 days will receive one WK Themed keycap set as a gift.
Note: If you place an order with other vendors within the first 7 days, you can also get the same bonus.

VENDORS
Global Vendors
USA
EU
• Inpad
Taiwan
• You are here!
Worldwide

Group Buy Guidelines
Production Timelines
-GB Date: Aug 24th ~ Oct 9th, 2023
-Production Time: October - November 2023
-Estimated Shipping Date: November 2023
Please note that the actual shipping date may change, which is related to the orders received after the end of the GB.
Order Cancel Policy
As for Group Buy items, order cancellations are accepted before the group buy ends.
Otherwise, orders can not be canceled under any other circumstances unless we cancel the project.
Since GB items are limited in order quantities and production time, we are unable to accept random cancellations.
Warranty Policy
IQUNIX custom mechanical keyboard comes with a one-year hardware(PCB) warranty from the date of purchase. This warranty covers any defects in hardware under normal use.
If there are any defects related to the craftsmanship of the keyboard, please contact us within 15 days of receiving the keyboard for us to address the issue.
Learn more details: Warranty Policy
Other Notes
All rendered images are for illustrative and display purposes only. The actual product may vary due to product improvements or changes.
The accessories of the keyboard, such as PCBs and plates, may undergo changes before production.
We will announce the specific details in the upcoming project updates.
