BUILT FOR FASTER INPUT,
TUNED FOR PRECISE CONTROL,
AND READY FOR EVERY DECISIVE MOMENT.
EDWARD GAMING
EV63 · EDG Edition
Co-Tuned for Competitive Play
EDWARD GAMING IS A PROFESSIONAL ESPORTS ORGANIZATION FROM CHINA AND A LONG-STANDING COMPETITOR IN VALORANT. THE TEAM HAS REPRESENTED VCT CN ACROSS MULTIPLE INTERNATIONAL EVENTS, BUILDING EXPERIENCE AGAINST TEAMS FROM AROUND THE WORLD. IN 2024, EDG WON VALORANT CHAMPIONS SEOUL, BECOMING THE FIRST CHINESE TEAM TO WIN A GLOBAL VALORANT TITLE.
Built To Win
Co-Tuned with EDG
5 rounds of testing and tuning with EDG players.
A 60% Hall effect keyboard tuned with EDG players, now with TSS Timing Sync for a more responsive, connected feel.
- TSS Timing Sync
- EDG Pro-Tuned
- End-to-End Latency Optimized
TSS TECHNOLOGY
A new HyperCore V3 update focused
on responsiveness and input timing.
TSS Timing Sync
Faster ResponseReduces unnecessary input delay
Consistent InputStable and reliable input timing
Responsive FeelMore natural and precise control
Timing Sync
Less Waiting. More Consistent Response Timing.
TSS aligns the keyboard’s input processing with the host’s USB polling cycle, ensuring each report carries the latest input data. By reducing unnecessary waiting between processing and reporting, it keeps response timing more consistent during rapid taps and quick direction changes.
MisalignedKey PressPolling CycleInput aligns with the polling cycle. It can be processed immediately, without waiting for the next cycle.
AlignedKey PressPolling CycleEND-TO-END LATENCY
The whole chain matters.
Performance is optimized across the full input path - not just one part of it.
True 0.01
mm Rapid Trigger
Precision Across
the Full Travel
The EV63 delivers true 0.01 mm Rapid Trigger precision across the full key travel, enabling extremely fine control over reset and reactuation points throughout the entire stroke.
Precise from initial movement to bottom-out.
UP TO 400%
Wider Usable Voltage Range
Cleaner signal. More precise input detection.
A wider usable voltage range captures magnetic changes more accurately, enabling precise and consistent input detection.
8000 Hz
Polling Rate. Fast Input, End to End
HyperCore V3 pairs an 8,000 Hz scan rate with 8,000 Hz USB polling, processing sensor data and trigger logic before reporting each input to your PC. From rapid taps to quick direction changes, it keeps response fast and consistent.
HYPERCORE V3
Built for a precise, balanced feel, every element is engineered to keep each input clean, stable, and responsive. Nothing excessive. Nothing between intention and action.
The moment your finger moves, the system responds. Every layer of the EV63 is engineered to carry precise key movement through the input chain with speed and consistency.
Hall-effect magnetic switches use a magnet inside each switch and a Hall sensor on the PCB to continuously detect key position throughout the key travel. This contactless sensing enables adjustable actuation and Rapid Trigger, allowing you to fine-tune each key's actuation point and the amount of movement required to reset and reactuate.
Hall-effect magnetic switches use a magnet inside each switch and a Hall sensor on the PCB to continuously detect key position throughout the key travel. This contactless sensing enables adjustable actuation and Rapid Trigger, allowing you to fine-tune each key's actuation point and the amount of movement required to reset and reactuate.
MAGNETIC X ULTRA
Engineered for a Stronger Magnetic Signal
Built for fast, controlled key movement with a crisp, consistent rebound.
- 36±10gf
- Initial Force
- 48±10gf
- End Force
- 3.5±0.2mm
- Travel Distance
- 140±15Gs
- Initial Magnetic Flux
- 780±80Gs
- End Magnetic Flux
- 100 million+
- Lifespan
DKS
More From Every Press.
Assign up to four actions to different stages of a single keystroke. Walk on a light press, run when you press deeper, or trigger another action on release—all without reaching for another key.
Adjustable Actuation
Set Every Key Your Way.
Set a shallow actuation for quick movement and ability inputs, or go deeper for more deliberate control. Tune individual keys to match how you play—or how you type.
MAGNETIC SWITCH
COMPATIBILITY
Swap. Detect. Play.
99%of Tested Magnetic Switches Supported.
Your Keyboard
Your Setup
Fine-tune how every key responds, switch between setups, and personalize your lighting—all from one intuitive interface.
Switch Type
Compatible with 99%* of tested magnetic switches.
Adjustable Actuation
Adjust how far a key must travel before it registers
Onboard Profiles 2/2
Binding Keys
Straight On Center Dead
Keys are triggered based on the SOCD settings.
Four functions based on press depth.
Light Presets
RGB R 216G 216B 216
Rapid Trigger（RT）
Customize re-actuation and release points.
Press (Activate)
Release (Deactivate)
Bottom Safety Zone
Adjust the inactive range at bottom-out.
YOUR LIGHT. YOUR SETUP.
Keep it subtle or add some color. Choose from static, breathing, and gradient effects, adjust brightness, or assign custom colors to individual keys. Highlight your most-used keys and make the lighting your own
GAMEPAD MODE
Turn key travel into analog input.
Movement · Steering · Throttle · Braking
Keyboard Structure
Feel the stability. Hear the difference.
A rigid aluminum case and plate give each keystroke a solid feel, while layered PORON foam and PET sheets help reduce unwanted resonance. From rapid in-game inputs to everyday typing, each press feels consistent and sounds clean.

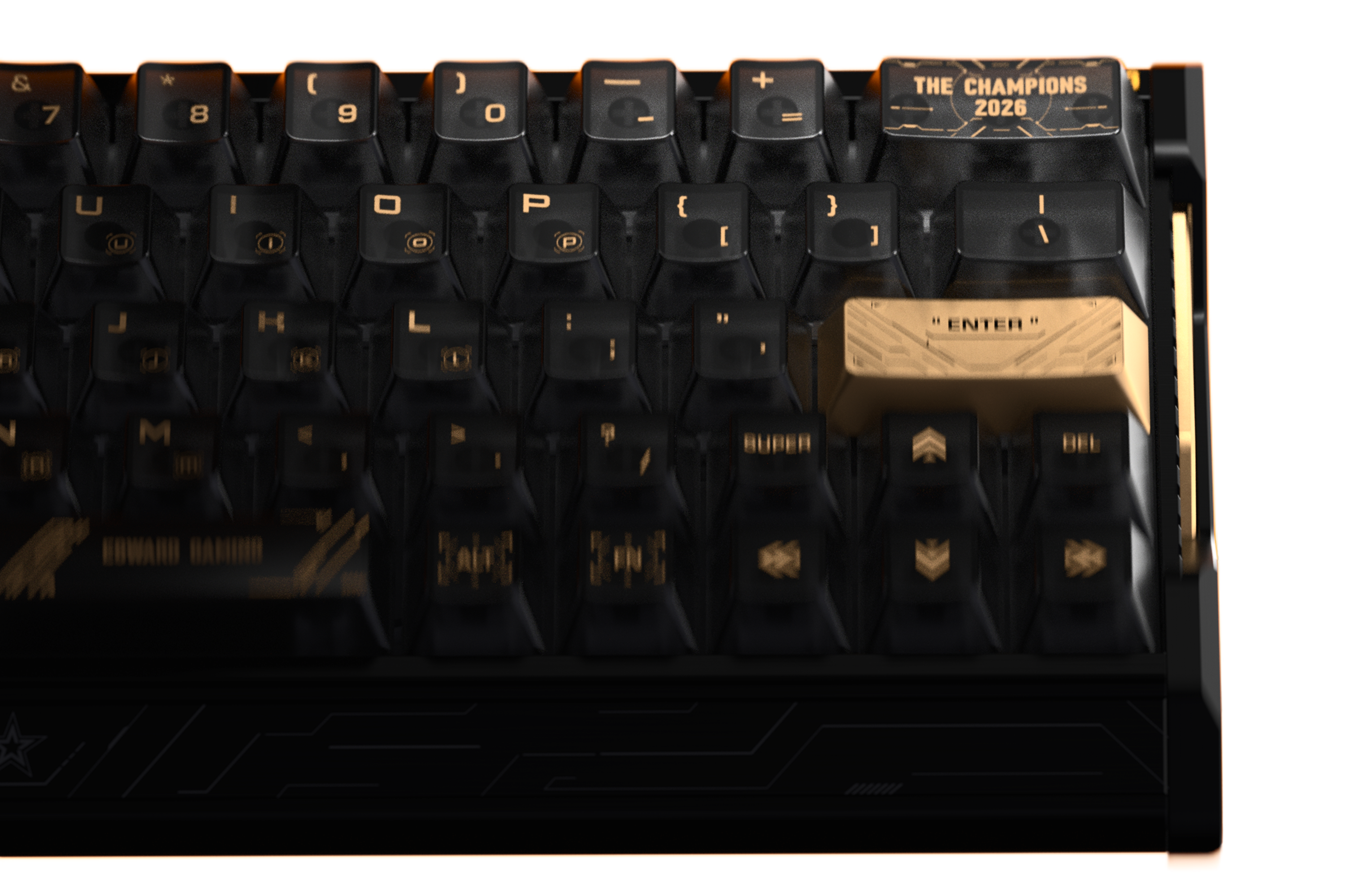

EDG SIGNATURE COLLECTION
EDG identity, down to every detail. A black-and-gold colorway, player signature keycaps, and CNC-machined metal accents bring EDG’s signature look to your setup. Individually numbered holographic player cards complete the collection.
SPECIFICATION
| Model | EV63 - EDG Edition |
|---|---|
| Layout | 60% |
| Structure | TrayMount |
| Case Material | Aluminum Case |
| Process & Finish | CNC/Anodized |
| Keycaps Material | Frosted Translucent PC/CNC Metal Keycaps |
| Switch | Magnetic X Ultra Switch |
| Key Count | 64 |
| Interface | USB Type-C |
| Mode | Wired Only |
| Warranty | 1 year |
| Dimension | 300.9mm × 126mm × 18.6mm (front height) |
| Weight | 1211g |
| Angle | 6° |
| LED | South-Facing LED |
| Stabilizer Structure | Plate-Mounted Stabilizers |
300.9mm126mm18.6mm
PERFORMANCE
| Polling Rate | 8000Hz |
|---|---|
| Scan Rate | 16000Hz |
| Latency | 0.125 |
| Rapid Trigger | 0.01mm |
| RT Sensitivity | 0.01mm |
| Adjustable Actuation | 0.01mm-3.1mm |
| Accuracy | 0.01mm |
| Programmable Software | Web-based |
| Compatible Systems | Windows, macOS |
| Dynamic Keystroke with Settings | Support |
| Hot Swappable | Support |
| N-Key Rollover | Support |
| Per-Key RGB | Support |
| Full Remap | Support |
PACKAGE CONTENTS
- Keyboard ×1
- Dust Brush ×1
- User Manual ×1
- L-shaped Paracord Cable (1.5m) ×1
- Keycap & Switch Puller ×1
- IQUNIX Logo Sticker
- EDG Player Cards ×6
- EDG Player Signature Enter Keycaps ×6
